Elta Model 8883 DVD Player - Lethal design defect
Non fatal electrocution from Elta MPEG-4 Player 8883 (DVD
Player)MPEG=4 player for TV ( On opening player, &
considering what was wrong, a combination of all of:
Maybe the Scart socket was grounding the dvd player, &
when that pulled out while power cable was still plugged in to
socket behind the player, while I was pulling the player out of
the tv stand ... 230 V nominal into my hand. Any one of these
would have saved me:
- If PSU gad not been deliberately grounded to chassis
- Chassis covered in plastic
- 3 core cable & plug
- Polarised socket like Britain or France, unlike Germany
& Italy
- Newer flat with earth
trip, or get owner to fit earth trip in wall in fuse
box.
(Apparently flats a few years after mine all started having
earth
trips built in). Flat was built new & first rented in
Oct. 1985. Neighbouring flat with same landlord, & several
changes of tenant since 1985 (thus intermittent vacant access),
also has no earth
trip in wall.
- Screw a socket on outside of back of TV stand & unplug
all equipment before moving.
Pictures (sorry, pictures out of focus):
-

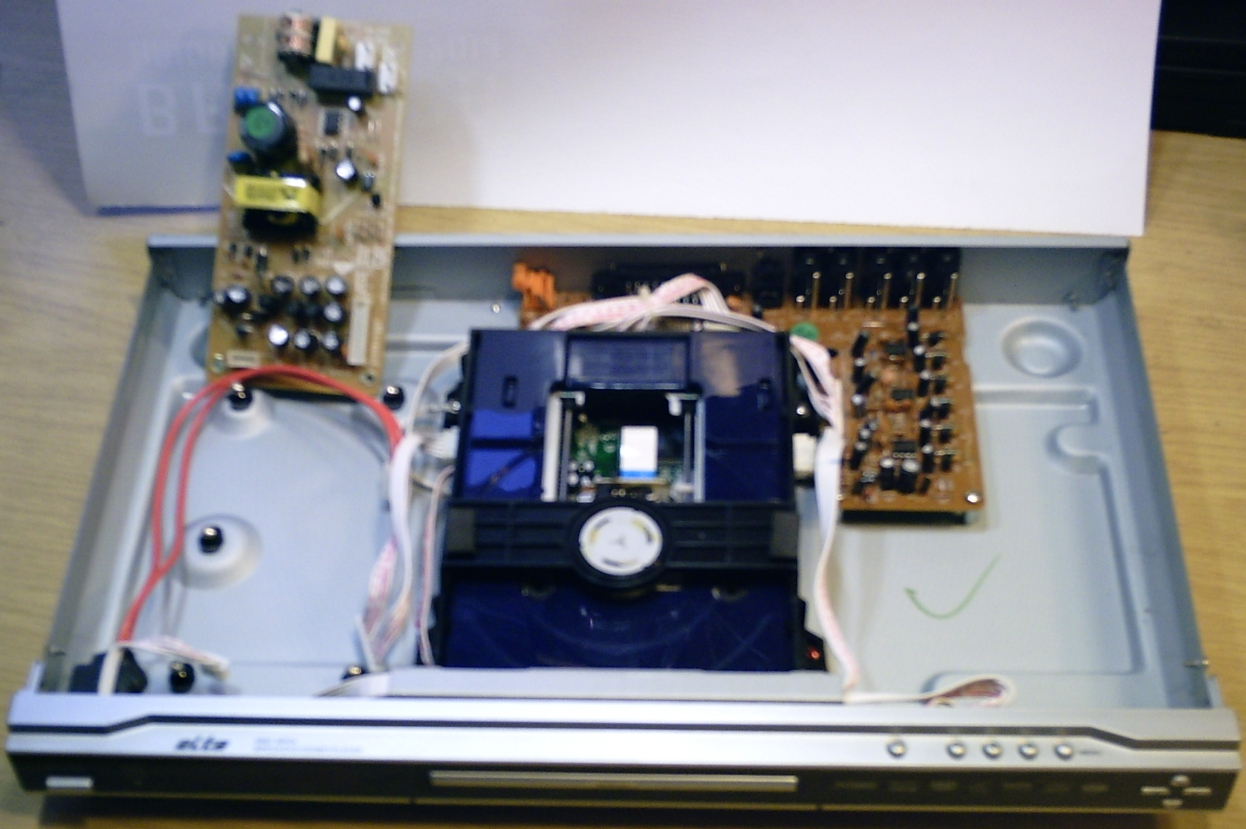

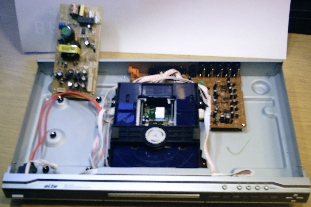

DVD player, lid off
-

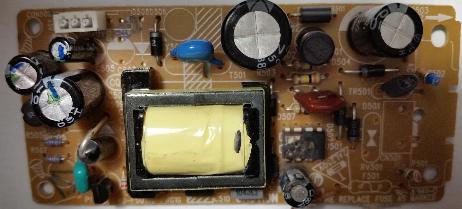

Power board removed from
DVD player, component side of PCB
-

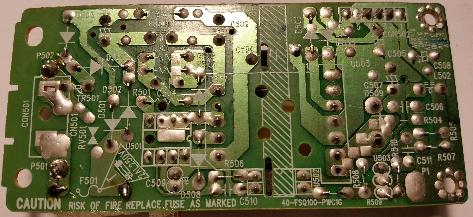

Power board removed from
DVD player, empty copper side of PCB.
- An
earth trip, that would have protected me, but then Nobody
sticks one of these in every power socket round a flat,
consider the cost ! (I only have one, for when drilling in
walls, or doing electronics work on open equipment).
This also shows the deficient
Germany style "Schuko" non- polarised sockets & some
other European countries use. (
French sockets are better with similar cost of materials:
French use an offset earth pin, giving polarised power,
defining which pin is live, & which is neutral).
- Back of
earth trip.
Detail from PCB of PSU: Elta CO-DPB118; 2004-1-1 MW
GW108
Net search on Elta 8883:
- https://slo-tech.com/forum/t79065/249
looks inside like a AMSTRAD 3016dx.
- www.eltagmbh.de Didn't answer my mail, Suspected out of
business years back. Looked again 2023-03-07: unlinked as a
domain squatter.
- http://www.elta.de/ A
similar named but different firm who don't sell electronics,
but simple appliances like coffee grinders.
|
|
